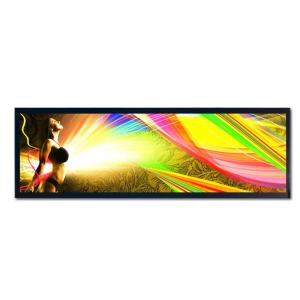

28.6 Inch IPS Bar Type Lcd Display With 500 Nits Luminance

Product Categories
Hangzhou Zoyo chuxian Intelligent Technology Co., Ltd.
Contact Now

28.6 Inch IPS Bar Type Lcd Display With 500 Nits Luminance

Brand Name : Manufacturer

Model Number : ZY-28601-B01

Certification : ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

Place of Origin : Hangzhou, China

MOQ : Flexible MOQ

Price : $2~$500 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5k-20k pieces per day

Delivery Time : 3-4 weeks

Packaging Details : CUSTOMIZED

Screen Size : 28.6 Inch

Resolution : 1920x540

Luminance : 500 Nits

Active Area(mm) : 698.4(W)×161(H)

Module Size(mm) : 729.2(W)×196.4(H)×25.1(D)

Interface : LVDS

Contact Now

28.6-Inch Diagonal Bar LCD Display

This cutting-edge 28.6-inch diagonal bar LCD display is specifically engineered for TFT-LCD televisions, utilizing advanced double linear digital technology. Designed for outstanding visual performance and versatility, this display module is perfect for a wide range of applications.

Key Features:
Super Wide Viewing Angle: Enjoy consistent image quality and color accuracy from nearly any angle, making it ideal for group viewing experiences.
Super High Contrast Ratio: Experience deep blacks and vibrant colors that enhance the overall visual experience, allowing images to truly stand out.
Super Fast Response Time: Reduce motion blur and ghosting, ensuring smooth playback for fast-moving content—perfect for multimedia applications.
DE (Data Enable) Only Mode: Simplify interfacing with display controllers, streamlining integration across various systems.
LVDS Interface: Benefit from high-speed data transmission, ensuring optimal performance and minimal signal degradation.
RoHS Compliance: This display adheres to environmental regulations, promoting sustainability and safety in electronic components.
Applications:
The bar TFT module excels in numerous applications, including:

TFT-LCD TVs: Ideal for modern television displays, providing an immersive and engaging viewing experience.
Multi-Media Displays: Perfect for digital signage, advertising, and other multimedia applications that demand high-quality visuals.
With its advanced features and exceptional performance, the 28.6-inch diagonal bar LCD display is an excellent choice for enhancing visual experiences in both consumer and commercial settings.

Genearal Features
Diagonal Size 28.6" Resolution 1920*540
Active Area 698.4(W)×161(H) mm Outline Dim. 729.2(W)×196.4(H)×25.1(D)
Luminance 500 cd/m² (Typ.) Interface LVDS 51
Viewing Angle 89/89/89/89 Viewing Direction IPS
Treatment Anti Glare Surface Hardness 3H
Life Span (hrs) 50k LCD Glass Power 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C
Storage Temperature:-20 ~ 60 °C
More details please contact us
